Light pollution

One of the often discussed themes is so called “light pollution“. A long time we participate in research in this area and we have a direct experience with a lot of measurement of the night sky, night city background, and luminance analyses.

With luminance meter LumiDISP – LDA ML7 you are able to measure so small luminance, as you cannot see by eye – in levels below 0,001 cd.m-2. It can be very useful for checking light in protected natural areas, parks and zones, where light pollution should be limited.

In the period 2022 – 2024, we have been involved in research on methods for the assessment of artificial light in the night environment. A unique measurement system was developed, the output of which will be a methodology for the assessment of artificial light in the night environment. We are waiting for the approval of the methodology, but a prototype of the instrument has been created and it is yielding very interesting results. Here again, we use digital camera technology supplemented by special adaptations, software algorithms and methods to obtain the necessary indicators.

 For example, you can see on the pictures below which were obtained during measurement in Liberec in 2009.

In 2021, we took part in a unique experiment of switching off public lighting in Brno during the COVID lockdown. 42,000 luminaires were switched off and we were able to compare the effect of public lighting on the luminance of the sky in different zones. Thanks to digital luminance analysis, it is possible to accurately identify the sources of sky glow and glare and their contributions.

Measurement of luminance and its distribution

We also develop and produce a device we named LumiCOPTER. A professional drone with an RTK module, spectrally modified camera and more than 30 minutes of flight time on one charge. It gives you a possibility to perform luminance analysis from above, so you can measure any outdoor object from all sides. You may use this device to measure light spill from the illuminated object into the surrounding environment.

Panoramic images

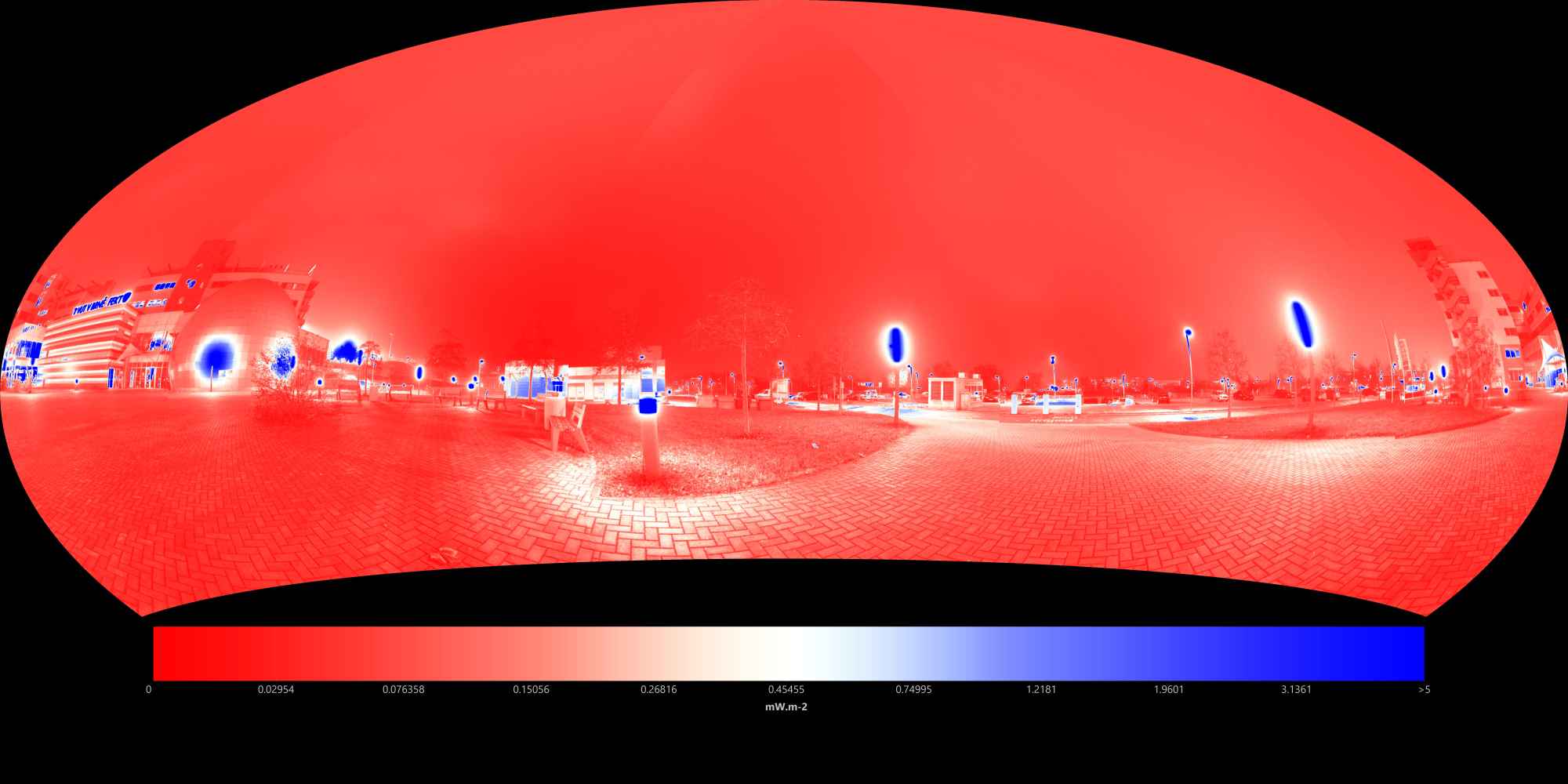

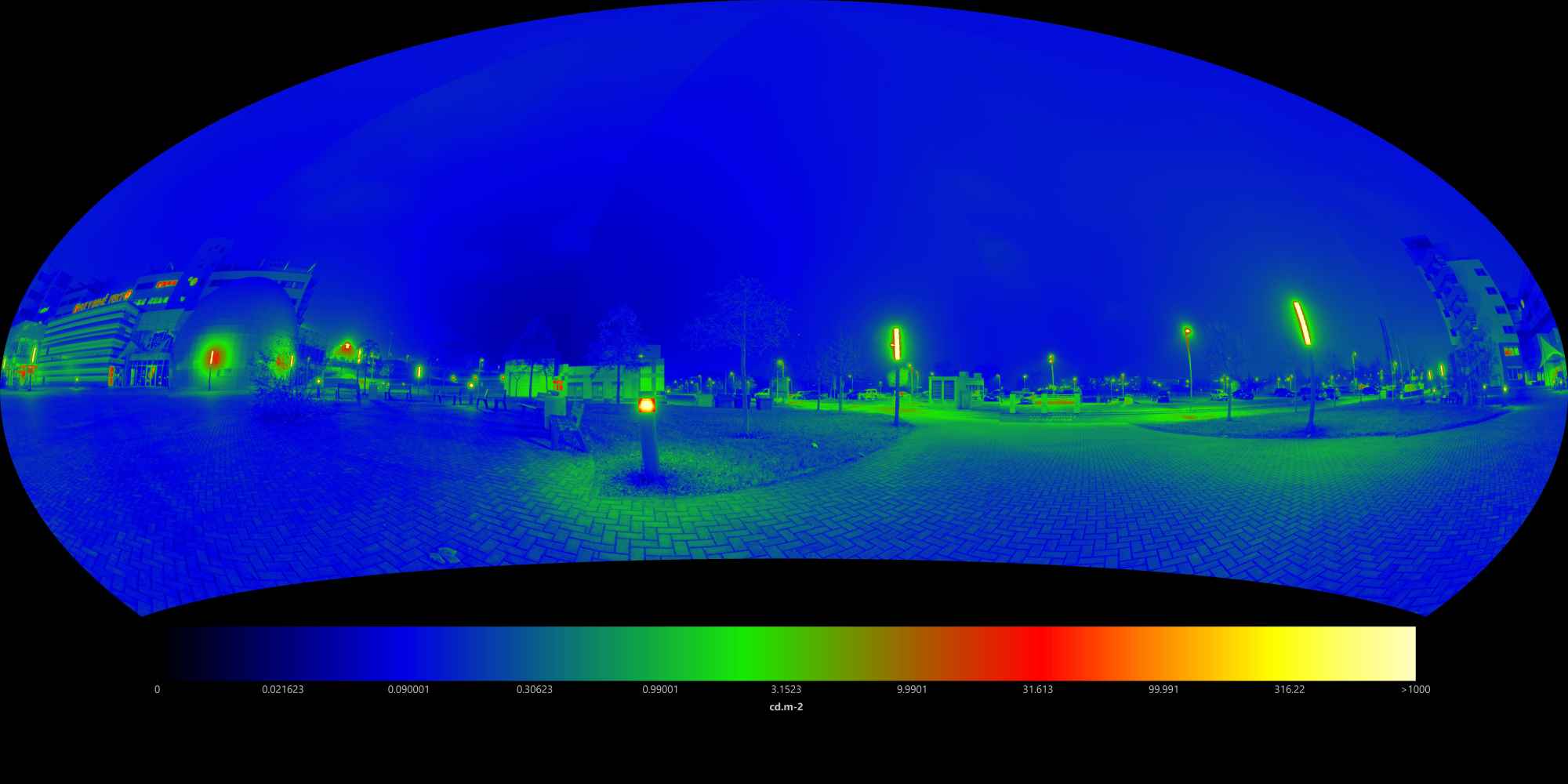

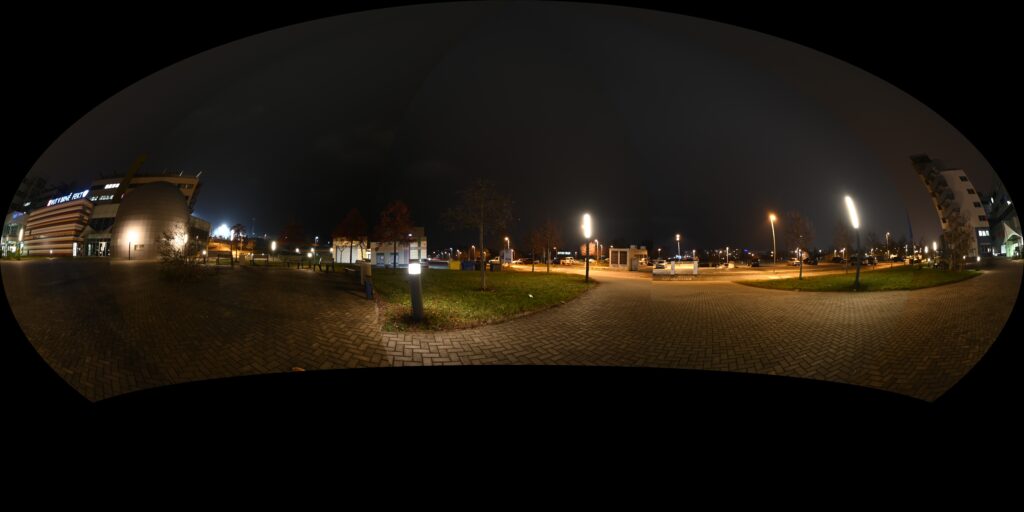

You can use arithmetic module to compose images together to form panoramic measurements. It is therefore possible to describe the entire space around you with a single resulting file without the need to use complex programs or plugins for displaying photospheres. Transformation into the Hammer-Aitoff projection is also available.

.

ARE YOU INTERESTED

Don’t hesitate to ask us!

We are here to help, advise and possibly arrange cooperation!
